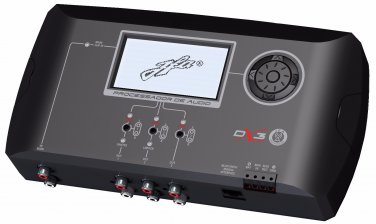

JFA Electronics DSP DX3 3way Crossover


JFA Electronics DSP DX3 3way Crossover

Price: $214.00 add to cart
Feedback: 0%, 17 sales Ask seller a question
Shipping: US-Mainland: free (more destinations)
Sales Tax: Kentucky: 6%
Condition: Brand new
Payment Options: Money Order,
Offering a huge variety of high-precision adjustments, the DX3 processor considerably improves the performance and quality of the audio system, also featuring the unprecedented option of being controlled via Bluetooth. Through Mobile Bluetooth interface (sold separately), all settings are made the distance in real time by an Android application with dynamic and intuitive interface, available for free on PlayStore. Using digital signal processors (DSPs) can be performed in real-time EQ parametric filters, cuts, alignment, gain, phase reverse, and other settings.




The DX3 Processor consists of one set of inputs (L and R) and three sets of output channels (L + R).


INTERFACE

OUTPUT LEVELS

The parameter IN on the left, (MASTER), relates to the power amplitude of the sound in the
outputs system. When the cursor is on this parameter, the user can increase or decrease the
level of all outputs simultaneously. The numerical parameters relate to the sound power in its

own respective outputs system. When the cursor is on this parameter, you can increase or
decrease the level of the related output.

The indication of the selected cursor is by the thicker bar and also by the
text box with the volume value. This ranges from 0 to 100.

For each output, there is a corresponding key to activate the MUTE function.

When MUTE is activated, the corresponding output bar stays dotted. The
corresponding output will stay without signal, but the level is still
displayed because there is a possibility to edit the output level at any
time. When the MUTE key is pressed again, the bar stays continuous
and maintains the output level value.

When the MUTE key is pressed and the screen is at rest,

Immediately, the LEVEL screen is loaded and the output that has been changed will
show the new update. For this, the LEVEL icon should be unlocked.

EQUALIZATION

Preset: Allows streamlined equalization. When selecting the

Desired option, the 15 gain parameters change automatically according to the
preset selected.

• FLAT: Resets the equalization of the 15 tracks gains. The equalizer
works, in this case, in bypass mode.

• ELECTRONIC | tecnobrega | SERTANEJO | AXE | FUNK | Pancadão |

ROCK: The 15 levels of adjustment for the EQ bands are preconfigured
to perfect the songs of the selected genre (original preset).

• MANUAL: If there is a change of one of the ORIGINAL PRESETS (which can not
be changed), the current equalizer values will go to MANUAL preset.

NOTE: The contents of the MANUAL preset is lost every time
the user changes an original preset.

MEMO (1,2,3): Preset that can hold its own equalization configuration. Even changing to
other presets, the content that was previously saved in this preset is not lost. MEMO is not an
original preset so it can be edited.

15 LEVELS OF EQUALIZATION BANDS:

There are 15 gain regulators to 15 pre-defined frequencies. The more to the left of the screen, the lower
the frequency that will be equalized. These regulators cause a gain
and attenuation in the band of the respective equalized filter. The indication of
the selected regulator is represented by the thicker bar and also by the
text box with the value of the gain. The amplitude value regulator varies
-10.0dB to +10.0dB with incremental steps of 0.5dB.

FREQ: Only when the cursor is located on one of the 15 regulators does it
appear at the base of the screen of the FREQ parameter.

This parameter shows the center frequency of the equalization filter.

To adjust the center frequency of the equalization filter, you must press the
Key. At this time, the selection box switches to the FREQ parameter. After
adjusting the center frequency of the equalization filter, press the
key to continue browsing the 15 regulators.

When the cursor is on the FREQ parameter indicating the possibility of
the value being edited, the corresponding band regulator will stay flashing.

The 15 parameters are related to the FREQ profiles. Each profile can
be with a different FREQ, but all presets will be with the
FREQ parameters of that profile.

OUTPUT SETTING

In this frame, you can adjust the high pass and low pass filters in the Butterworth or Linkwitz
configuration for each channel.

H. PASS: Select the cutoff frequency of the high pass filter output.
20Hz to 20kHz.

L. PASS: Select the cutoff frequency of the low pass filter output.
20Hz to 20kHz.

TYPE: Selects the type of filter to use.
BUT12, BUT24, L-A24, L-R48.

Note: There is a minimum interval between the H and L PASS.

When setting H.PASS to 20Hz, the filter stays flat.
When setting L.PASS to 20KHz, the filter stays flat.

PHASE: Set the signal phase in the corresponding output.

The values are 0 ° or 180 °.

DELAY: Parameter responsible for delaying the sound produced by the chosen output.
The value of this parameter is displayed in centimeters and ranges between 0 and 250 cm with
1 cm step.

1) Define the coil of zero reference (measured from the front panel of the box)
In the above example, the reference was half of the horn coil.

2) Measure the other way and insert, into the crossover, the measure in cm that is closest by
turning the navigation scroll.

NOTE: The fact that the coils of different transducers (speakers,
drivers and tweeters) are not aligned have delays that may harm the perfect reproduction of
sound.

The DELAY parameter allows aligning, electronically, the coils
and applying delays to the other boxes since the deep coil is
the zero reference (measured from the front panel of the box, according to the scheme
above).

OUT: Pressing the keys -- the user can move between the available outputs. Navigation is
cyclical.

L + R: Select (YES) for mono output or (NO) for stereo output.

LIMITER

The limiter serves to protect the sound system against distortions, limiting
amplitude at a predetermined maximum value.

The limiter acts without damaging the sound dynamics and quality.

LIMITER PARAMETERS

• Threshold (-20dB to 0dB):
Volume level that the limiter starts working.

• Attack (1ms to 50ms):
Time that the limiter takes to work (set according to table 06).

• Release (15ms to 1000ms) (recovery):
Time that the limiter takes to return to the initial condition.

For better audio quality, the DX EVO adjusts automatically the Release time
(Auto Release) that will be 16 times bigger than the Attack time.

Note: the Release of time may also be adjusted manually.

Worktime: Tells how long the processor is connected.

This parameter can be increased up until the value of 99,999 hours and 59 minutes.

RST: Pressing the RST key (reset), the worktime parameter will be reset and
then immediately return its functionality.

LIFETIME: Tells the time of the DX EVO processor usage, since the last reset
of manufacture.

PROFILE SELECTION

PROFILE is the name given to the collection of settings that can be redeemed
according to the preferences previously saved.

Each PROFILE group’s information of configurations and output levels and
manual equalizer settings are saved for each profile.

The DX EVO processor features 3 profiles.

To change the PROFILE, just press the key ---- or key -----.

The navigation will be cyclical. When making the choice of the new profile, the screen will
open a popup to confirm the change of profile. To choose the desired option, just click on
OK.

SCREEN SAVER

* 10 seconds of inactivity in the MENU screen.

* 5 minutes of inactivity in any other screen.

If any key of the equipment is pressed, the screen saver disappears
and enters the HOME MENU except when the MUTE buttons are
pressed. In this case, it will show the LEVEL screen.

The Android device can only access the DX EVO processor when the
local device is in the rest screen.

CONNECTING WITH BLUETOOTH MOBILE INTERFACE

The DX EVO processor can be connected to the BLUETOOTH MOBILE INTERFACE; a
product that enables remote communication via Bluetooth between the family
DX processors EVO and Android devices (smartphone and tablet).

The DX JFA PROCESSOR app, available in the Play Store, is designed to
provide greater mobility when configuring the DX EVO processor
through a friendly and easy navigational interface.

PRODUCT VERSION

ABOUT

This screen informs the processor model the
firmware version installed and the JFA website.

From this screen, you can perform a reset on the device so your
factory settings will be restored. Pressing the key ---- for 5
seconds on the screen will open a pop-up.

To proceed with the reset, just press ---. To ignore the pop-up, just
press any key (except---). When you press the center key, the user
will be taken to the START MENU.

TECHNICAL SPECIFICATIONS

Common among all models-

DSP, 24bit
Input/Output Impedance- 15,000 / 600
Maximum input level- 3.2v
FR- 20Hz - 20KHz
THD- 0.002% 1KHz
SNR- >90dB
Crosstalk- 86dB 1KHz
Operating Voltage- 9-15vDC
Idle Consumption- 20mA
Temp- 32F - 158F
Dimensions- 9.17" x 1.7" x 4.92"
Weight- All under 1lb

DX3-
Consumption under use- 190mA (without Bluetooth addon accessory)
Consumption under use- 240mA (with Bluetooth addon accessory)

Input/output-
1 Set of Stereo input- Main
3 Sets of Stereo outputs

Warranty- 1 Yr from date of purchase.

We are the only Authorized Distributor of JFA Electronics in North America.
