SPL-Lab Next-USB 3 Sensor Kit SPL dB RTA AC Power Measuring system
3 images

SPL-Lab Next-USB 3 Sensor Kit SPL dB RTA AC Power Measuring system
SPL-Lab Next-USB 3 Sensor Kit SPL dB RTA AC Power Measuring system
SPL-Lab Next-USB 3 Sensor Kit SPL dB RTA AC Power Measuring system

SPL-Lab Next-USB 3 Sensor Kit SPL dB RTA AC Power Measuring system

Price: $799.00 add to cart
Feedback: 0%, 17 sales Ask seller a question
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
Payment Options: Money Order,
Please read the following-
This kit comes with 3 sensors of your choice-
SPL sensor
AC Clamp Power sensor and
RTA

We will NOT ship the unit until you have notified us which 3 sensors you wish to purchase.

Can run SPL + SPL + SPL or
SPL + SPL + AC Clamp or
SPL + AC Clamp + AC Clamp together during measurements.

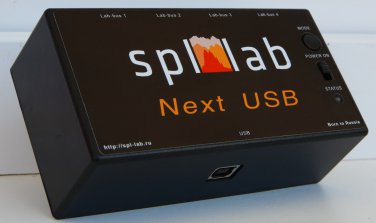

Next-USB
All-purpose multichannel measuring device
Four Lab-Bus ports for connecting sensors
Updatable software
Data transmission to a PC

Description
The Next-USB device is intended for transmitting data received from Next-LAB sensors to a PC, tablet PC, or smartphone. As opposed to Next -LCD, this device does not have the inbuilt display and can not be used for independent work. The main advantage of Next-USB is that it has four independent Lab-Bus ports for connecting pressure sensors, microphones or power sensors. It makes Next-USB really an all-purpose and completely cascadable tool. When user purchases, for example, a set for measuring sound pressure, in future they can supplement it with the microphone for measuring AFC or with the power sensor for measuring current and voltage. Simultaneous work with four signal sources is available. For controlling the device and transmitting data from Next-USB, the device can be connected to the PC via the USB or, if the Wi-Fi module is installed, via wireless network to a tablet PC, or smartphone.
Ergonomics
The Next-USB device is performed as a monoblock that has the control button, USB port for connecting to the PC and charging the device, four Lab-Bus ports for connecting sensors, feed switch and three-coloured LED for indicating status and extent of battery charge. The device can be supplied with the inbuilt Wi-Fi module for connecting and managing via the wireless network. The case of the device is made of shockproof plastic material.
Functions
Measuring the sound pressure using Next-Lab SPL Sensor.
Measuring AFC and performing a spectral analysis of the signal using Next-Lab RTA Microphone.
Measuring the current-voltage characteristics of direct and alternating current circuits using Next-Lab Power Sensor.
Possibility of simultaneous work with four signal sources.
Possibility of controlling the device and transmitting data to the PC via USB port or wireless network (optional).
Measuring the characteristics of home, car or concert hall acoustic systems and setting them up.
Measuring the characteristics of home, car or industrial power supply networks and setting them up.
Preparation and holding the autosound contests of any format (AMT, EMMA , dB Drag, IASCA, BassRace, etc.), as well via the Internet (optional).
Package Contents
Main unit
USB connection cable for charging and connecting it to a PC
Spl-Lab Measuring Center software for Windows
Audio-CD with audio tracks for tuning (sine, sweep-tones, noise)


Next-Lab SPL Sensor
A high precision sensor for measuring sound pressure
Lab-Bus digital bus
Internal precision ADC 16 Bit
Frequency range from 10 to 120 Hz
Amplitude range from 110 to 185 dB
High precision up to 0.1 dB
Calibrated according to the TERM-LAB

Next-Lab RTA Microphone
Microphone for measuring AFC
Lab-Bus digital bus
Frequency range from 10 to 20000 Hz
Amplitude range from 50 to 120 dB
Calibrated according to Audiomatica CLIO
Internal precision ADC 16 Bit

Next-Lab AC Power Sensor
The device for measuring the power characteristics of signal and power circuits
Lab-Bus digital bus
Internal dual-channel ADC
Measuring alternating current circuits with frequency up to 15000 Hz
Contactless current sensor from 1 to 400 ampere
Measuring voltage from 1 to 300 volt
Measuring power up to 120 kW
True RMS algorithm
Measuring impedance
Distortion (clip) detector
