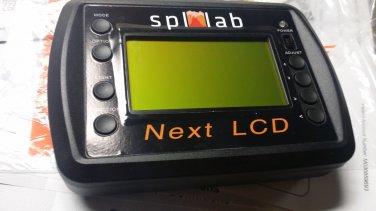

SPL-Lab Next-LCD 2 Sensor Kit SPL dB RTA AC Power Measuring system
2 images

SPL-Lab Next-LCD 2 Sensor Kit SPL dB RTA AC Power Measuring system
SPL-Lab Next-LCD 2 Sensor Kit SPL dB RTA AC Power Measuring system

SPL-Lab Next-LCD 2 Sensor Kit SPL dB RTA AC Power Measuring system

Price: $669.00 add to cart
Feedback: 0%, 17 sales Ask seller a question
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
Payment Options: Money Order,
Please read the following-
This kit comes with 2 sensors of your choice-
SPL sensor
AC Clamp Power sensor or
RTA

We will NOT ship the unit until you have notified us which 2 sensors you wish to purchase.

Next-LCD
Multifunctional spectrum analyser
Completely autonomous
Internal battery
Graphic display with back light
Two Lab-Bus ports for connecting sensors
Built-in signal generator (sine, noise)
Updatable software
Transmitting data to PC

Description
The Next-LCD is a completely autonomous, all-purpose measuring device. All measured characteristics are displayed as digits and graphs on-screen. The closed software environment of the device eliminates inaccurate readings. The device has two Lab-Bus digital bus ports to which the pressure sensors, microphones or power sensors can be connected. All this makes Next-LCD an all-purpose and completely cascadable tool. When a user purchases, for example, this set for measuring sound pressure, in the future they can supplement it with our microphone for measuring AFC or with our power sensor for measuring current and voltage. Simultaneous work with two signal sources is possible. The built-in sound signal generator of different waveforms (sine, white noise, pink noise) works in background mode alongside the process of measuring. The Next-LCD can be connected to a PC for controlling the device and transmitting data via USB, for example, when it is necessary to display the measurement results on a big screen. The device can be fitted with the built-in Wi-Fi module for connecting to Wireless networks which allow transmitting measurement data for long distances via the Internet in real time mode.
Software characteristics<
The SPL mode for measuring sound pressure peak values with possibility of displaying the spectrum and waveform of the measured signals. Simultaneous work with two signal sources. Distortion (clip) detector
The AVG mode for measuring the weighted time-average value of a sound pressure. Simultaneous work with two signal sources
The RTA mode for measuring AFC with possibility of displaying the spectrum and waveform of the measured signals. Displaying with breaking the spectrum into octaves. Distortion (clip) detector
The PWR mode for measuring alternating/direct current and voltage, power, frequency of the signal, non-linear distortion (clip) coefficient. Simultaneous work with two signal sources
GEN mode. Background stereo generator of test signals: sine, pink noise and white noise
The CON mode for connecting with PC. Allows performing customization and transmission of the digitized data for detailed analysis in Measuring Center for Windows
Ergonomics
The Next-LCD device is performed as a monoblock that has graphic display with back light, 8 control buttons, USB port for connecting to a PC and for charging the device, two Lab-Bus ports for connecting sensors, two RCA type outputs of the sound signal generator, feed switch and three-coloured LED for indicating status and extent of battery charge. The device can be supplied with the built-in Wi-Fi module for connecting and managing via the local network. The case of the device is made of shockproof plastic material.
Functions
Measuring sound pressure using Next-Lab SPL Sensor
Measuring AFC and performing a spectral analysis of the signal using Next-Lab RTA Microphone
Measuring power characteristics of direct and alternating current circuits using Next-Lab Power Sensor
Possibility of simultaneous work with two signal sources
Work of the sound signal generator in the background alongside the process of measuring
Displaying the signal waveform and spectrum onscreen
Displaying the measured values in digital form onscreen
Possibility of controlling the device and transmitting data to a PC via USB port or wireless network
Measuring the characteristics of home, car or concert hall acoustic systems and setting them up
Measuring the characteristics of home, car or industrial power supply networks and setting them up
Preparation and holding of autosound contests of any format (AMT, EMMA , dB Drag, IASCA, BassRace, etc.).
Package Contents
Main unit
USB connection cable for charging and connecting it to a PC
Spl-Lab Measuring Center software for Windows
Audio-CD with audio tracks for tuning (sine, sweep-tones, noise)


Next-Lab SPL Sensor
A high precision sensor for measuring sound pressure
Lab-Bus digital bus
Internal precision ADC 16 Bit
Frequency range from 10 to 120 Hz
Amplitude range from 110 to 185 dB
High precision up to 0.1 dB
Calibrated according to the TERM-LAB

Next-Lab RTA Microphone
Microphone for measuring AFC
Lab-Bus digital bus
Frequency range from 10 to 20000 Hz
Amplitude range from 50 to 120 dB
Calibrated according to Audiomatica CLIO
Internal precision ADC 16 Bit

Next-Lab AC Power Sensor
The device for measuring the power characteristics of signal and power circuits
Lab-Bus digital bus
Internal dual-channel ADC
Measuring alternating current circuits with frequency up to 15000 Hz
Contactless current sensor from 1 to 400 ampere
Measuring voltage from 1 to 300 volt
Measuring power up to 120 kW
True RMS algorithm
Measuring impedance
Distortion (clip) detector
